Quad operational amplifier featuring a 33MHz bandwidth and 11V/µs slew rate. This general-purpose amplifier offers high precision with a 200µV input offset voltage and 10nA input bias current. Achieving 120dB common mode rejection and 126.02dB power supply rejection, it operates from 2.5V to 18V dual supply. The device is housed in a 14-PDIP package, suitable for temperatures from -55°C to 125°C.
PackageN
Current3.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4228PA technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 33MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 120dB |
| Gain Bandwidth Product | 33MHz |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.5V |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Nominal Gain Bandwidth Product | 33MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 3.7mA |
| Operating Supply Voltage | 18V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 126.02dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 11V/µs |
| Supply Current | 3.8mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 160dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4228PA Datasheet
Download the complete datasheet for Texas Instruments OPA4228PA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

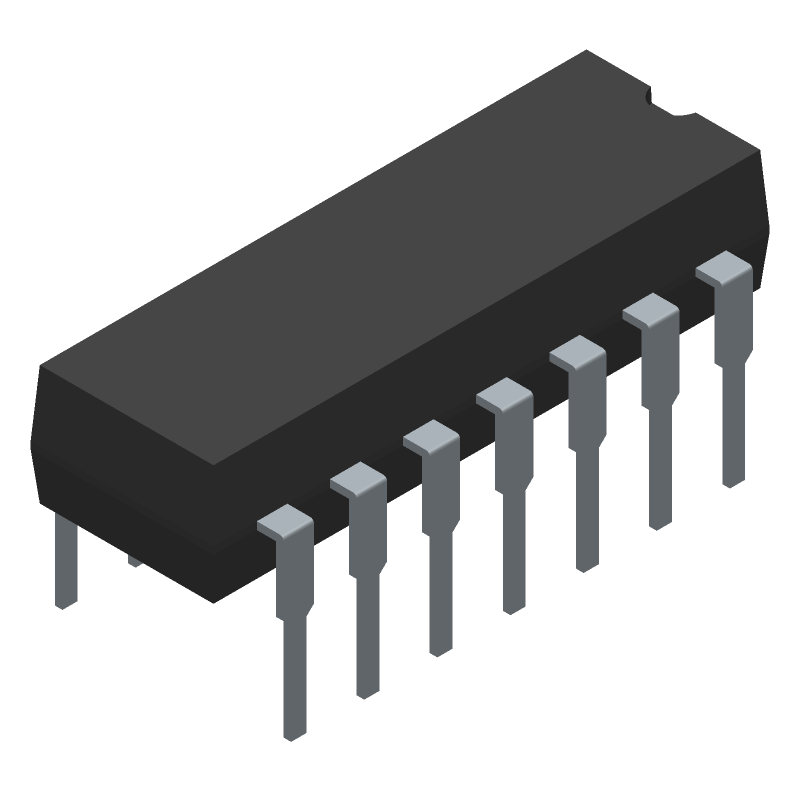

Product Images
