LD2980CM33TR

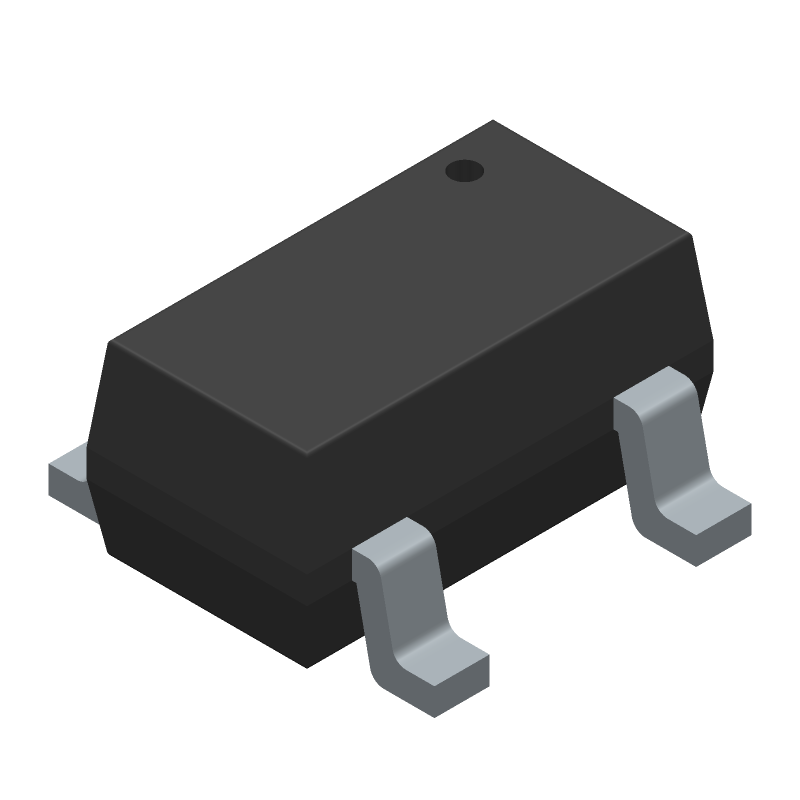

3.3V 50mA LDO Voltage Regulator, SOT-23-5, 16V In, 80uA Ib

Ultra low drop voltage regulator, a positive fixed output linear regulator, provides a stable 3.3V output with a maximum output current of 50mA. Designed for surface mount applications, this component operates within a 2.5V to 16V input voltage range and features a low input bias current of 80µA and a quiescent current of 100µA. Its compact SOT-23-5 package measures 3mm x 1.75mm x 1.3mm, and it is RoHS compliant and lead-free. This regulator is compatible with low ESR output capacitors and offers a Power Supply Rejection Ratio (PSRR) of 63dB.

PackageSOT-23-5

MountingSurface Mount

PolarityPositive

Quick Jump:

Technical Specifications

Stmicroelectronics LD2980CM33TR technical specifications.

General

Package/Case	SOT-23-5
Height	1.3mm
Input Bias Current	80uA
Lead Free	Lead Free
Length	3mm
Max Input Voltage	16V
Min Input Voltage	2.5V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	50mA
Min Output Voltage	3.3V
Max Supply Current	1.2mA
Mount	Surface Mount
Number of Outputs	1
Number of Regulators	1
Output Configuration	Positive
Output Current	50mA
Output Type	Fixed
Output Voltage	3.3V
Package Quantity	3000
Packaging	Tape and Reel
Polarity	Positive
Power Supply Rejection Ratio (PSRR)	63dB
Quiescent Current	100uA
Radiation Hardening	No
RoHS Compliant	Yes
Width	1.75mm
