Ultra low drop voltage regulator, 1.8V fixed output, 50mA output current. Features 2.5V to 16V input voltage range, 80µA input bias current, and 1.2mA maximum supply current. Compatible with low ESR output capacitors, offering 63dB PSRR. Packaged in a SOT-23-5 surface mount case, this RoHS compliant component operates from -40°C to 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD2980CM18TR technical specifications.
General
| Package/Case | SOT-23-5 |
| Height | 1.3mm |
| Input Bias Current | 80uA |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Min Output Voltage | 1.8V |
| Max Supply Current | 1.2mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 50mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 63dB |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LD2980CM18TR Datasheet
Download the complete datasheet for Stmicroelectronics LD2980CM18TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

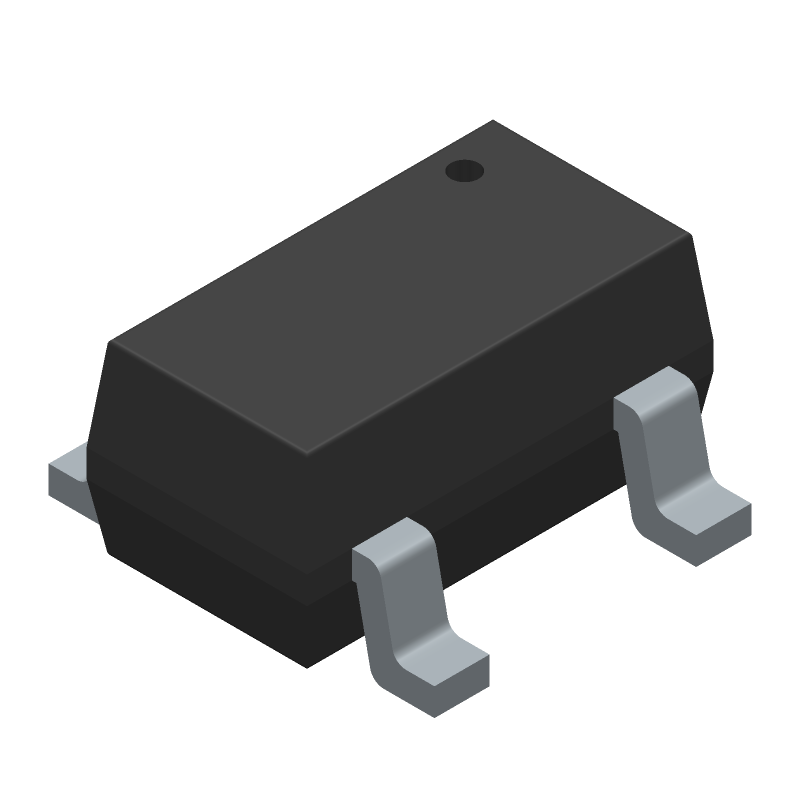

Product Images
