Positive fixed output voltage regulator IC, delivering 12V at up to 2A. Features a 500mV dropout voltage and a maximum input voltage of 35V. Operates across a -20°C to 80°C temperature range with a maximum power dissipation of 15W. Packaged in a TO-220-4 through-hole mount configuration.
PackageTO-220-4
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi KA278R12CTU technical specifications.
General
| Package/Case | TO-220-4 |
| Dropout Voltage | 500mV |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 13V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2A |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 2A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 2.829g |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi KA278R12CTU Datasheet
Download the complete datasheet for Onsemi KA278R12CTU to view detailed technical specifications.
No datasheet is available for this part.

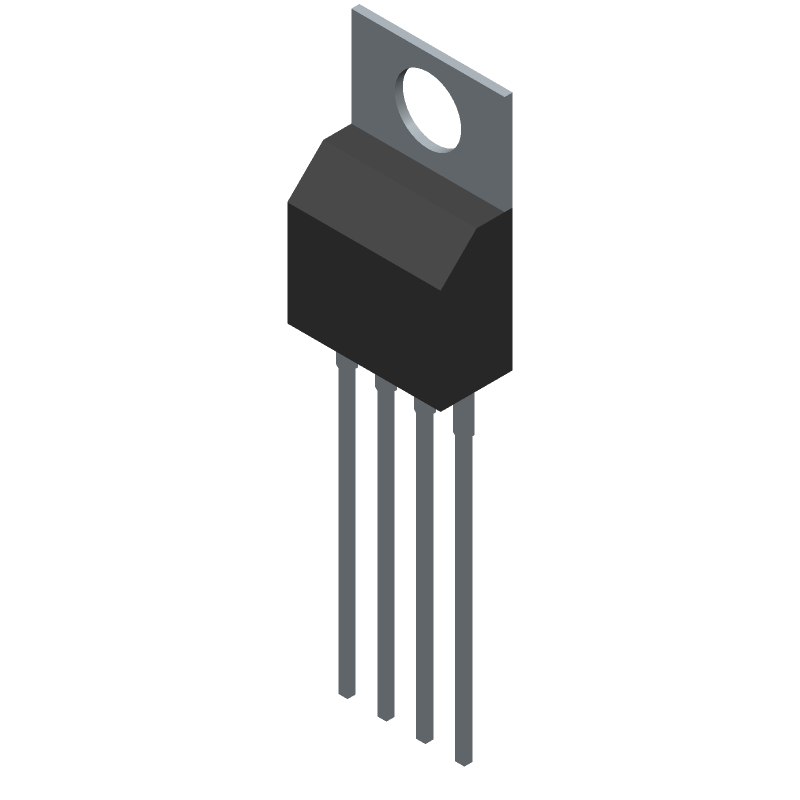

Product Images
