16-bit, 600 kSPS serial Analog-to-Digital Converter (ADC) featuring a unipolar pseudo-differential input. Achieves 0.75 LSB Differential Nonlinearity and 1.25 LSB Integral Nonlinearity. Operates with a 2.7V to 5.25V supply voltage, consuming a nominal 22mA. Offers SPI interface compatibility and a signal-to-noise ratio of 89.5 dB with 119 dB SFDR. Packaged in a 28-VQFN with gold contact plating, suitable for operation from -40°C to 85°C.
PackageVQFN
PolarityUnipolar
Power110mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8370IBRHPT technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 600KS/s |
| Differential Nonlinearity | 0.75LSB |
| Integral Nonlinearity (INL) | 1.25LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 110mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 22mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 110mW |
| Power Dissipation | 110mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 600000S/s |
| Signal to Noise Ratio (SNR) | 89.5dB |
| Spurious-free dynamic range (SFDR) | 119dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8370IBRHPT Datasheet
Download the complete datasheet for Texas Instruments ADS8370IBRHPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

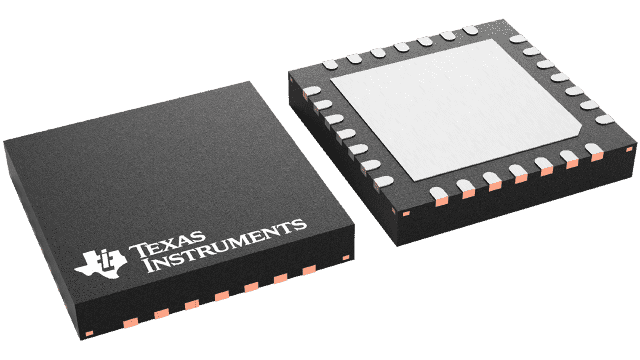

Product Images
