Eight-channel, 14-bit analog-to-digital converter (ADC) with an 80 MS/s conversion rate. Features LVDS and serial interfaces, 75.5 dB SNR, and 84 dB SFDR. Operates from a 1.7V to 1.9V supply voltage with a power consumption of 464mW. Packaged in an 80-HTQFP with gold contact plating, suitable for -40°C to 85°C operation. RoHS compliant and lead-free.
PackageHTQFP
Power464mW
Quick Jump:
Technical Specifications
Texas Instruments ADS5294IPFPT technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 80MS/s |
| Integral Nonlinearity (INL) | 5.5LSB |
| Interface | LVDS, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 1.9V |
| Min Supply Voltage (DC) | 1.7V |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 8 |
| Number of Analog Inputs | 8 |
| Number of Bits | 14 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Elements | 8 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 464mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 80000000S/s |
| Series | ADS5294 |
| Signal to Noise Ratio (SNR) | 75.5dB |
| Spurious-free dynamic range (SFDR) | 84dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5294IPFPT Datasheet
Download the complete datasheet for Texas Instruments ADS5294IPFPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

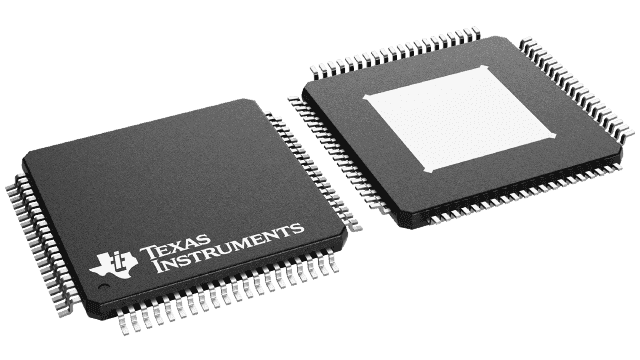

Product Images
