Mono Class-D audio power amplifier, 20W max output power, 12.8W output power, 4 Ohm load impedance. Features I2S input, 23.6dB voltage gain, and 73dB PSRR. Operates from 8V to 18V supply voltage with a typical 15V operating voltage. Surface mount HTSSOP package, -40°C to 85°C operating temperature range. RoHS compliant.
PackageHTSSOP
Current15mA
MountingSurface Mount
Power12.8W
Quick Jump:
Technical Specifications
Texas Instruments TPA3200D1DCP technical specifications.
General
| Package/Case | HTSSOP |
| Gain | 23.6dB |
| Lead Free | Contains Lead |
| Load Impedance | 4R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 20W |
| Max Power Dissipation | 4.89W |
| Max Supply Current | 15mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Power | 12.8W |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 4.89W |
| Power Supply Rejection Ratio (PSRR) | 73dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPA3200D1 |
| Supply Current | 15mA |
| Supply Type | Single |
| Voltage Gain | 23.6dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA3200D1DCP Datasheet
Download the complete datasheet for Texas Instruments TPA3200D1DCP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

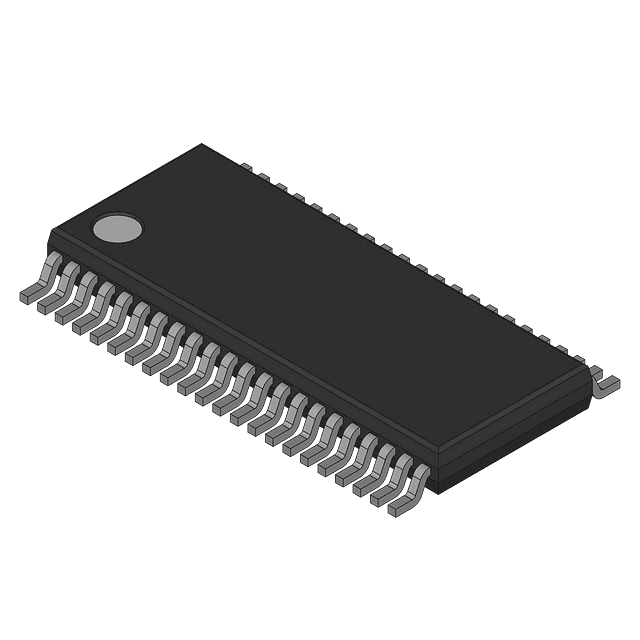

Product Images
