Adjustable voltage reference IC with a 1.24V to 16V output range and 1% accuracy. Features a maximum output current of 20mA and a low cathode current of 80µA. This surface mount component is housed in a 3-pin SOT-23 package, suitable for tape and reel packaging. Operating temperature range is -40°C to 85°C, with a maximum input voltage of 18V. The device is RoHS compliant and halogen-free.
PackageSOT-23-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi TLV431ASN1T1G technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-23-3 |
| Cathode Current | 80uA |
| Halogen Free | Halogen Free |
| Height | 1.11mm |
| Lead Free | Lead Free |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 16V |
| Min Output Voltage | 1.24V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Type | Adjustable |
| Output Voltage | 16V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 1.24V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
| Weight | 0.050717oz |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi TLV431ASN1T1G Datasheet
Download the complete datasheet for Onsemi TLV431ASN1T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

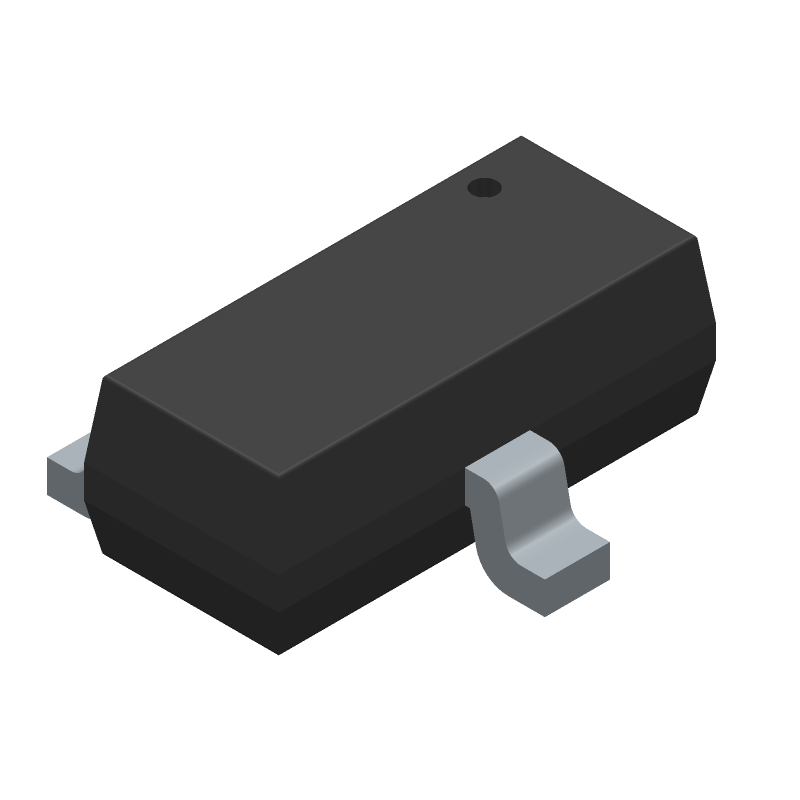

Product Images
