Texas Instruments
LM3633YFQR
Complete lighting power Solution for smartphone handsets 20-DSBGA -40 to 85
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3633YFQR technical specifications.
General
| Dimming | PWM |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.6V |
| Number of Channels | 3 |
| Number of Outputs | 6 |
| Output Current per Channel | 30mA |
| Output Voltage | 40V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3633YFQR Datasheet
Download the complete datasheet for Texas Instruments LM3633YFQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

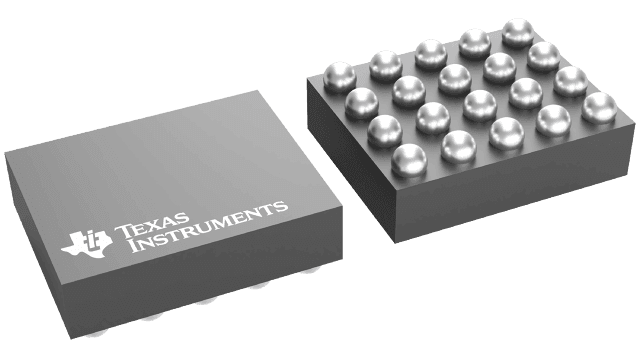

Product Images
