1-A, fixed, positive output, low-dropout (LDO) voltage regulator with enable functionality. Features a 1.3V output voltage, 220mV dropout voltage, and 2% accuracy. Operates from a 2.7V to 5.5V input range, delivering up to 1A output current. Offers a wide operating temperature range of -40°C to 125°C. Packaged in an 8-SON, tape and reel format.
PackageSON
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS79613DRBR technical specifications.
General
| Accuracy | 2% |
| Package/Case | SON |
| Dropout Voltage | 220mV |
| Input Bias Current | 265uA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.3V |
| Min Output Voltage | 1.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 42dB |
| Quiescent Current | 260uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS79613DRBR Datasheet
Download the complete datasheet for Texas Instruments TPS79613DRBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

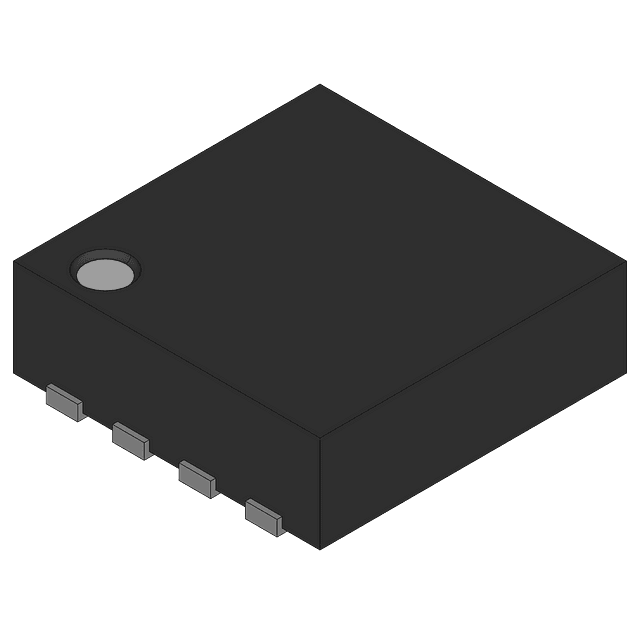

Product Images
