Adjustable positive LDO regulator with a 7.5A output current rating. Features a 0.75V dropout voltage and a 1% output voltage accuracy. Operates with a minimum input voltage of 2.5V and a maximum input voltage of 26V, providing an adjustable output voltage up to 26V. Housed in a TO-247 package for through-hole mounting, this lead-free component offers a wide operating temperature range from -40°C to 125°C.
PackageTO-247
Current Rating7.5A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC29752WWT technical specifications.
General
| Accuracy | 1% |
| Package/Case | TO-247 |
| Current Rating | 7.5A |
| Dropout Voltage | 425mV |
| Height | 21.44mm |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Input Voltage | 26V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7.5A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 7.5A |
| Output Type | Adjustable |
| Output Voltage | 26V |
| Output Voltage Accuracy | 1% |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 75mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.252V |
| RoHS Compliant | Yes |
| Width | 5.28mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC29752WWT Datasheet
Download the complete datasheet for Microchip MIC29752WWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

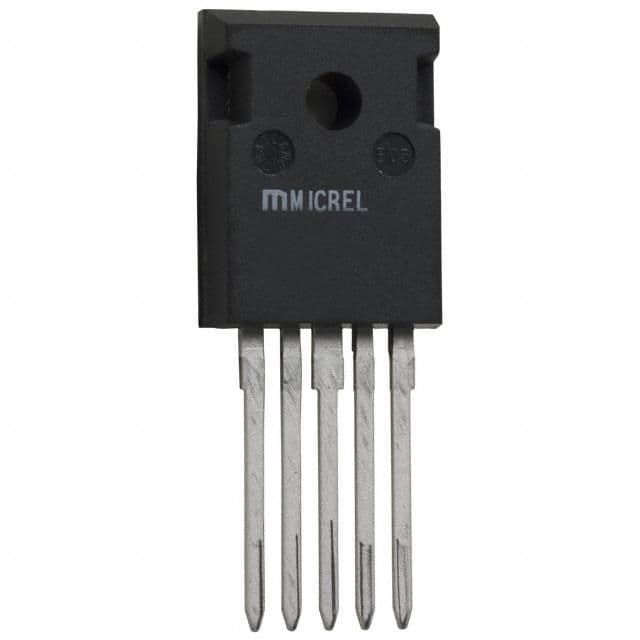

Product Images
