16-bit Analog-to-Digital Converter (ADC) with a 105 MS/s sampling rate. Features differential input, LVDS and parallel interface, and 80.8 dB Signal-to-Noise Ratio (SNR). Operates with a supply voltage range of 3.1V to 5.25V and a power consumption of 2.1W. Packaged in a 64-VQFN with gold contact plating, suitable for surface mounting. This RoHS compliant component operates from -40°C to 85°C.
PackageVQFN
MountingSurface Mount
PolarityBipolar
Power2.1W
Quick Jump:
Technical Specifications
Texas Instruments ADS5482IRGCT technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 105000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 10LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.35W |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Nominal Supply Current | 316mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 2.1W |
| Power Dissipation | 2.15W |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 105MS/s |
| Signal to Noise Ratio (SNR) | 80.8dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5482IRGCT Datasheet
Download the complete datasheet for Texas Instruments ADS5482IRGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

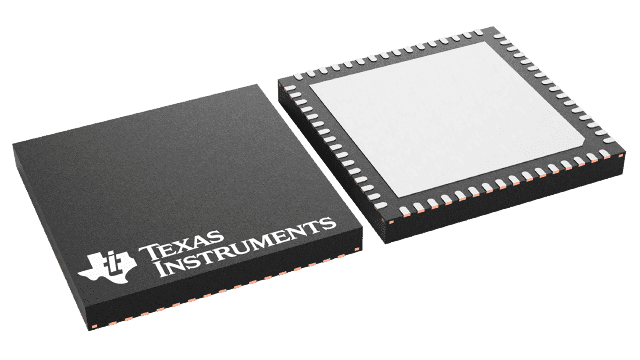

Product Images
