32-bit ARM Cortex-M3 microcontroller featuring a 36MHz CPU and 768KB of FLASH memory. Offers 80KB RAM, 112 I/Os, and 16 ADC channels. Integrated peripherals include I2C, SPI, USART, IrDA, UART interfaces, along with POR, PWM, WDT, DMA, and a temperature sensor. Operates from 2V to 3.6V supply, with a temperature range of -40°C to 85°C, packaged in LQFP.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101ZFT6 technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 36MHz |
| Interface | I2C, SPI, USART, IrDA, UART |
| Max Frequency | 36MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 768KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of ADC Channels | 16 |
| Number of I/Os | 112 |
| Number of Timers/Counters | 12 |
| Oscillator Type | Internal |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, Temp Sensor |
| Radiation Hardening | No |
| RAM Size | 80KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32F1 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F101ZFT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101ZFT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

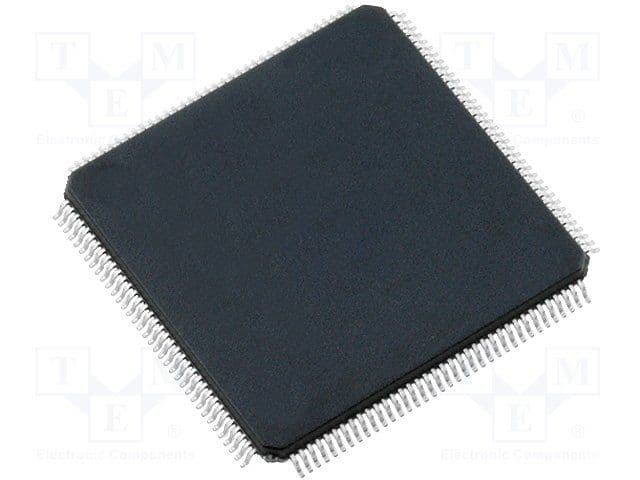

Product Images
