1A, 5.5V step-down DC/DC power module with adjustable output voltage from 600mV to 3.6V. Features 95% efficiency, UVLO, OCP, and OTP protection. Surface mountable in a compact 3mm x 2.6mm module package. Operates from -40°C to 125°C, with a 2.7V to 5.5V input range. Non-isolated, RoHS compliant, and lead-free.
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMZ10501SILR technical specifications.
General
| Package/Case | Module |
| Depth | 2.6mm |
| Efficiency | 95% |
| Features | UVLO, OCP, OTP |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 3.6V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Voltage | 3.6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® Nano |
| Voltage - Output 1 | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMZ10501SILR Datasheet
Download the complete datasheet for Texas Instruments LMZ10501SILR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

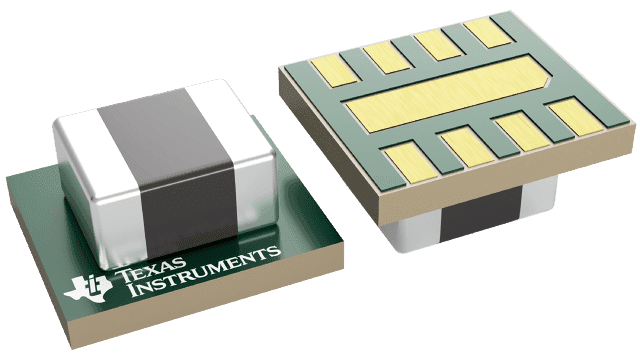

Product Images
