Texas Instruments
UC3705J
Military-grade 1.5-A/1.5-A dual-channel gate driver with 40-V VDD and dual-inputs for each output 8-CDIP 0 to 70
PackageCDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Texas Instruments UC3705J technical specifications.
General
| Package/Case | CDIP |
| Fall Time | 60ns |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 1W |
| Max Supply Current | 4mA |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 20V |
| Packaging | Rail/Tube |
| Power Dissipation | 1W |
| Propagation Delay | 100ns |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments UC3705J Datasheet
Download the complete datasheet for Texas Instruments UC3705J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

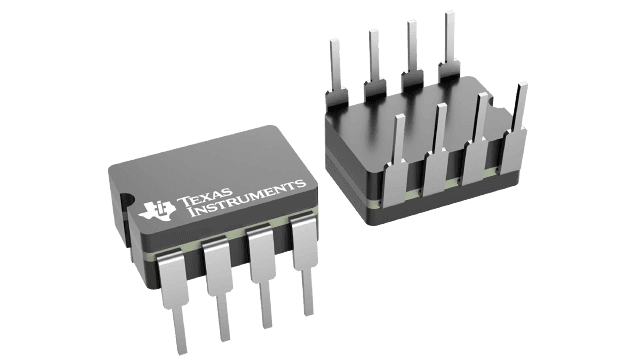

Product Images
