High-efficiency, single-inductor buck-boost converter for power management. Features a 1.8V to 5.5V input voltage range and delivers up to 800mA output current. Achieves up to 96% efficiency with a low 25µA quiescent current. Offers adjustable output voltage from 1.2V to 5.5V. Packaged in a 10-SON surface-mount case, suitable for operation between -40°C and 85°C.
PackageSON
Current50uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63030DSKR technical specifications.
General
| Package/Case | SON |
| Efficiency | 96% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 800mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 800mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 25uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 50uA |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS63030DSKR Datasheet
Download the complete datasheet for Texas Instruments TPS63030DSKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

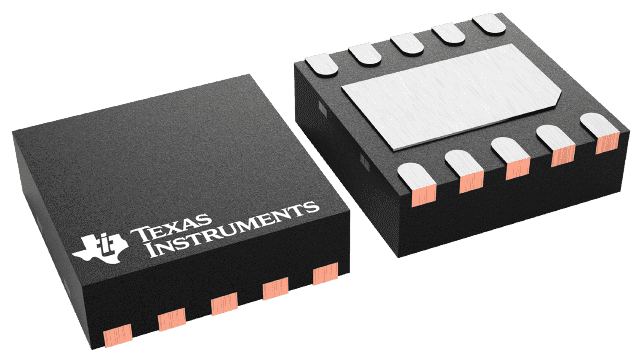

Product Images
