Texas Instruments
TPS60230RGTT
5-channel, current-regulated 125-mA charge pump for white LED backlight in 3x3 QFN 16-VQFN -40 to 85
Frequency1.25MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments TPS60230RGTT technical specifications.
General
| Package/Case | VQFN EP |
| Frequency | 1.25MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 125mA |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 5 |
| Number of Outputs | 5 |
| Output Current | 125mA |
| Output Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 200uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| Touchscreen | Capacitive |
| Weight | 0.00085oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS60230RGTT Datasheet
Download the complete datasheet for Texas Instruments TPS60230RGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

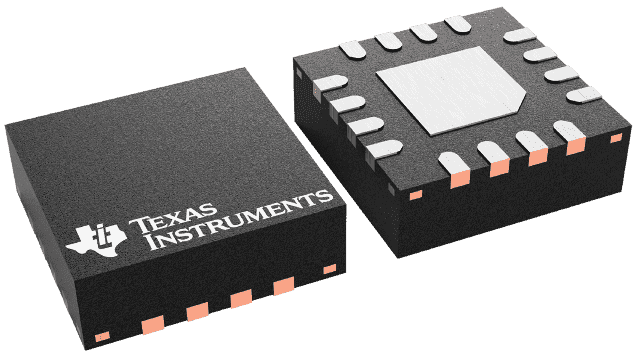

Product Images
