Technical Specifications
Texas Instruments TPS22981RGPT technical specifications.
General
| Package/Case | QFN |
| Fault Protection | Over Temperature, Reverse Current |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.3V |
| Output Configuration | High Side |
| Output Current | 500mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Weight | 0.00163oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22981RGPT Datasheet
Download the complete datasheet for Texas Instruments TPS22981RGPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

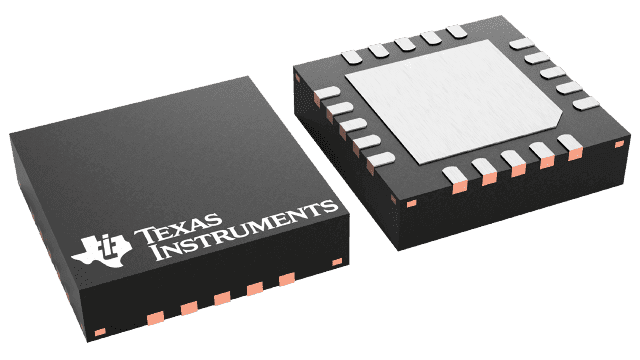

Product Images
