Texas Instruments
TAS5716PAPR
20-W stereo, 10- to 26-V, digital input, Class-D audio amplifier w/ speaker EQ, DRC & bass boost 64-HTQFP 0 to 85
PackageHTQFP
Current80mA
Power20.6W
Quick Jump:
Technical Specifications
Texas Instruments TAS5716PAPR technical specifications.
General
| Package/Case | HTQFP |
| Dual Supply Voltage | 24V |
| Features | I²C |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 20.6W |
| Max Power Dissipation | 2.89W |
| Min Supply Voltage (DC) | 3V |
| Output Power | 20.6W |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.89W |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TAS5716 |
| Supply Current | 80mA |
| Supply Type | Dual |
| Weight | 0.009108oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TAS5716PAPR Datasheet
Download the complete datasheet for Texas Instruments TAS5716PAPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

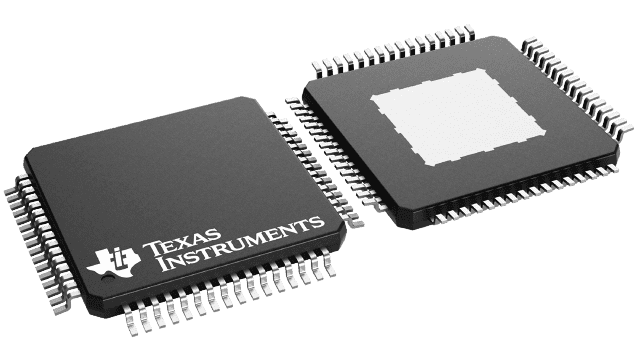

Product Images
