Technical Specifications
Diodes PI2DBS212ZHEX technical specifications.
General
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.8V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| On-State Resistance | 10R |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PI2DBS212ZHEX Datasheet
Download the complete datasheet for Diodes PI2DBS212ZHEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

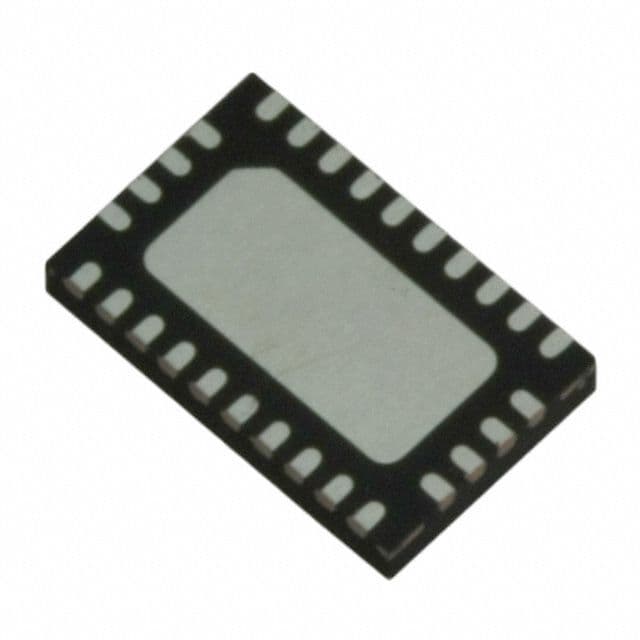

Product Images
