Amphenol
L77SDCH37SOL2RM8
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol L77SDCH37SOL2RM8 technical specifications.
General
| Color | Black |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 5A |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 2.76mm |
| RoHS Compliant | Yes |
| Series | SD |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol L77SDCH37SOL2RM8 Datasheet
Download the complete datasheet for Amphenol L77SDCH37SOL2RM8 to view detailed technical specifications.
No datasheet is available for this part.

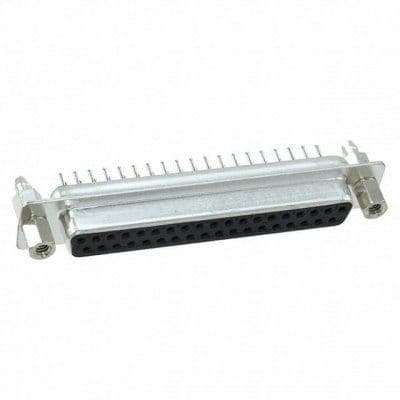

Product Images
