TDK
B32024A3684M000

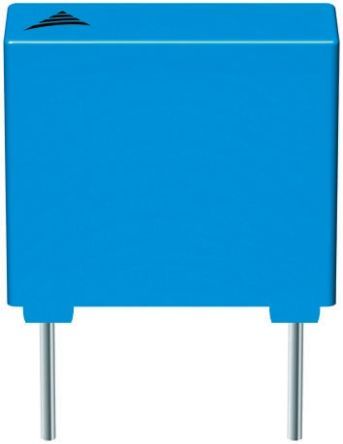

Film Capacitor, Polypropylene, 1500V, 20% +Tol, 20% -Tol, 0.68uF, Through Hole Mount, RADIAL LEADED, LEAD FREE
PackageRadial
Capacitance680nF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32024A3684M000 technical specifications.
General
| Capacitance | 680nF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Height | 30mm |
| Lead Pitch | 27.5mm |
| Length | 31.5mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 180 |
| Packaging | Bulk |
| Ratings | Y2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32024 |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 1.5kV |
| Width | 19mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32024A3684M000 Datasheet
Download the complete datasheet for TDK B32024A3684M000 to view detailed technical specifications.
No datasheet is available for this part.
