Technical Specifications
Panasonic AQV412EHAX technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Length | 8.8mm |
| Load Current | 550mA |
| Max Input Current | 50mA |
| Max Output Current | 550mA |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV412EHAX Datasheet
Download the complete datasheet for Panasonic AQV412EHAX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

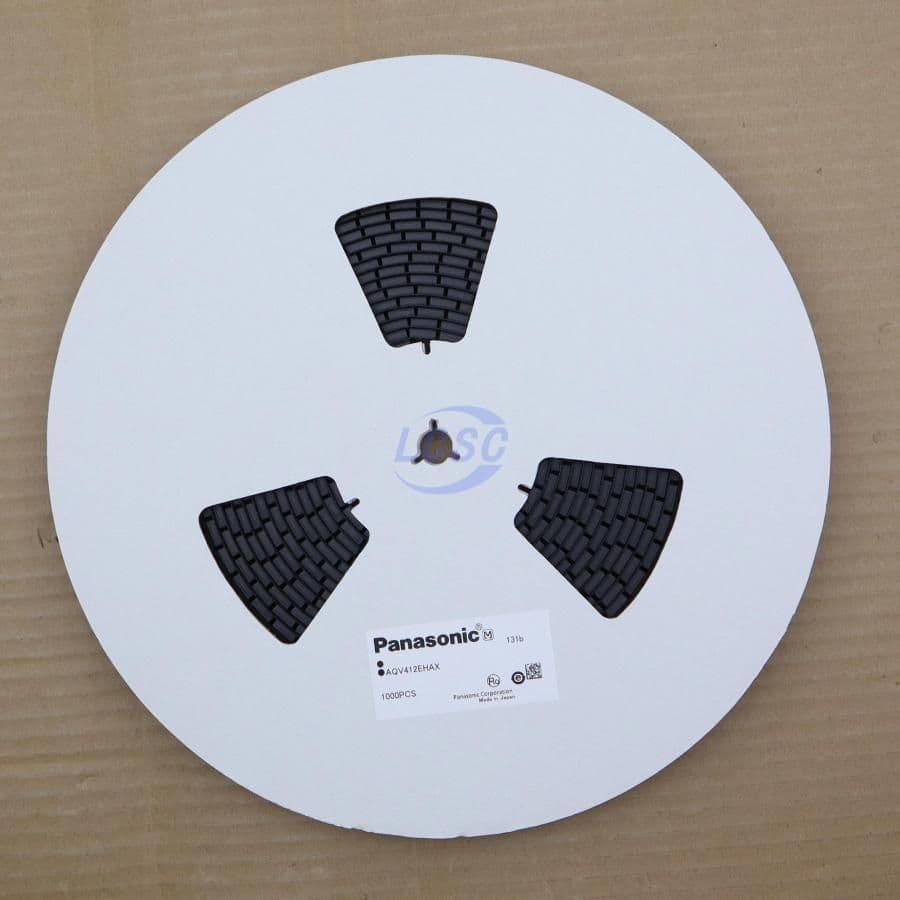

Product Images
