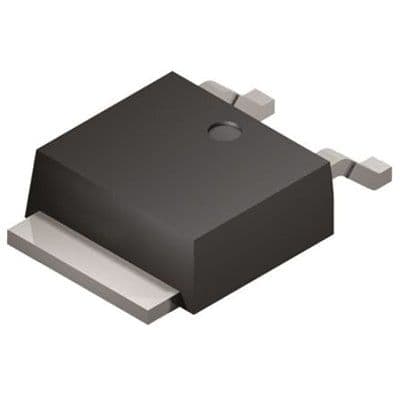

AP1084DG-13

Adjustable LDO Regulator, 5A, 1.25V-10.6V, TO-252, SM

Adjustable positive linear voltage regulator (LDO) with a 1.25V minimum and 10.6V maximum output voltage. Features a 1.3V dropout voltage and a maximum output current of 5A. This surface mount component operates from a 4.7V to 12V input voltage range and is housed in a TO-252-3 package. Offers a 1.275V reference voltage and a 5mA operating supply current.

PackageTO-252-3

MountingSurface Mount

PolarityPositive

Quick Jump:

Technical Specifications

Diodes AP1084DG-13 technical specifications.

General

Package/Case	TO-252-3
Contact Plating	Tin, Matte
Dropout Voltage	1.3V
Height	2.29mm
Lead Free	Lead Free
Length	6.58mm
Max Input Voltage	12V
Min Input Voltage	4.7V
Max Operating Temperature	125°C
Min Operating Temperature	0°C
Max Output Current	5A
Max Output Voltage	10.6V
Min Output Voltage	1.25V
Mount	Surface Mount
Number of Outputs	1
Number of Regulators	1
Operating Supply Current	5mA
Output Configuration	Positive
Output Current	5A
Output Type	Adjustable
Output Voltage	3.3V
Package Quantity	2500
Packaging	Tape and Reel
Polarity	Positive
Quiescent Current	10mA
Radiation Hardening	No
Reach SVHC Compliant	No
Reference Voltage	1.275V
RoHS Compliant	Yes
Weight	0.139332oz
Width	5.57mm
