Quad-channel, 14-bit analog-to-digital converter (ADC) with a 125 MS/s conversion rate. Features differential inputs, LVDS serial interface, and bipolar polarity. Operates over a -55°C to 125°C temperature range with a 3V to 3.6V supply voltage. Surface mount VQFN package with gold contact plating. Integral nonlinearity is 5 LSB, and signal-to-noise ratio is 73.7 dB.
PackageVQFN
Current155uA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS6445MRGCTEP technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 125MS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 5LSB |
| Interface | LVDS, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 4 |
| Number of Analog Inputs | 4 |
| Number of Bits | 14 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of Elements | 4 |
| Number of Inputs | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 1.68W |
| Power Dissipation | 1.8W |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 125MS/s |
| Signal to Noise Ratio (SNR) | 73.7dB |
| Supply Current | 155uA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS6445MRGCTEP Datasheet
Download the complete datasheet for Texas Instruments ADS6445MRGCTEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

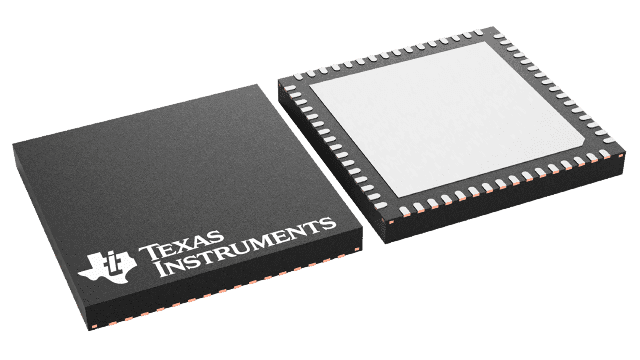

Product Images
