Texas Instruments
UCC28713DR
Constant-voltage, constant-current PWM with PSR, valley switching, NTC option, and 300mV cable comp. 7-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28713DR technical specifications.
General
| Package/Case | SOIC |
| Fault Protection | Over Voltage |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 35V |
| Output Current | 25mA |
| Output Voltage | 14V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC28713DR Datasheet
Download the complete datasheet for Texas Instruments UCC28713DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

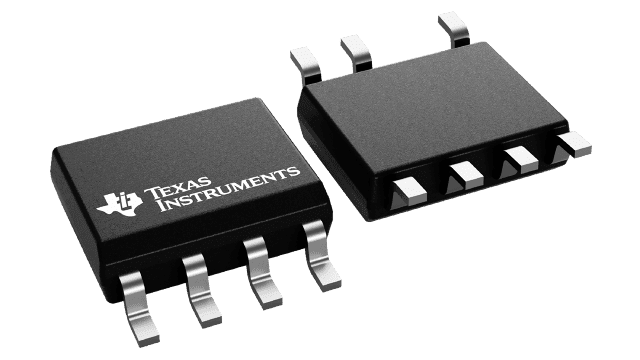

Product Images
