Single-channel CMOS buffer with Schmitt-trigger inputs, operating from 1.65V to 5.5V. Features push-pull output, 5ns propagation delay, and 11ns turn-on delay. Designed for surface mounting in a 5-SC70 package, this non-inverting logic IC offers a high level output current of -32mA and a low level output current of 32mA. Suitable for operation between -40°C and 125°C, with a nominal supply current of 500nA.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G17DCKR technical specifications.
General
| Package/Case | SC |
| Height | 1.1mm |
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Length | 2mm |
| Logic Function | Buffer, Inverting, Schmitt Trigger |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 500nA |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 5ns |
| Quiescent Current | 1.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Thickness | 900um |
| Turn-On Delay Time | 11ns |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G17DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G17DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

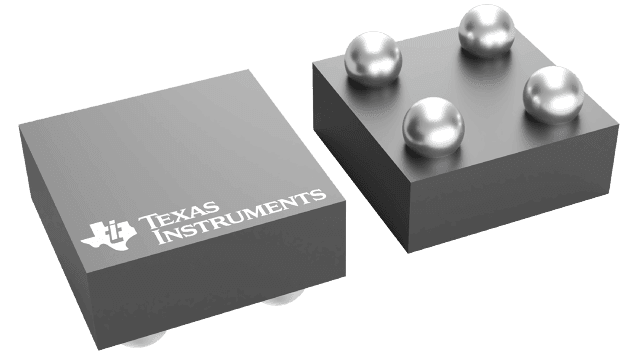

Product Images
