Texas Instruments
TPS84A20RVQR
2.95V to 17V, 10A Synchronous Buck, Integrated Power Solution 42-B3QFN -40 to 85
PackageBQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS84A20RVQR technical specifications.
General
| Package/Case | BQFN |
| Efficiency | 95% |
| Lead Free | Lead Free |
| Max Input Voltage | 17V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 600mV |
| Min Supply Voltage | 2.95V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 10A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Eco-Mode™ |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS84A20RVQR Datasheet
Download the complete datasheet for Texas Instruments TPS84A20RVQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

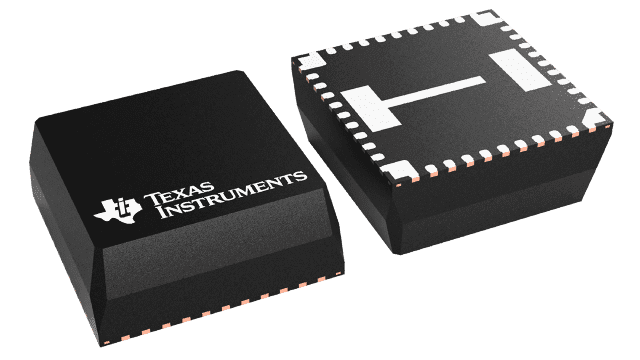

Product Images
