Single-output DC/DC controller and regulator for step-down applications. Features a 3V to 28V input voltage range and a 700mV to 2.6V output voltage range, supporting up to 20A output current. Operates at a 430kHz switching frequency with a maximum of 465kHz. Packaged in a 10-pin WSON EP with dimensions of 3.15mm x 3.15mm x 0.75mm, suitable for surface mounting. RoHS compliant with a 91% duty cycle and 320uA quiescent current.
Frequency430kHz
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51218DSCT technical specifications.
General
| Package/Case | SON |
| Duty Cycle | 91% |
| Frequency | 430kHz |
| Height | 0.75mm |
| Lead Free | Contains Lead |
| Length | 3.15mm |
| Max Frequency | 465kHz |
| Max Input Voltage | 28V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 2.6V |
| Min Output Voltage | 700mV |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6.5V |
| Output Current | 20A |
| Output Voltage | 2.6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 320uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | D-CAP™ |
| Termination | SMD/SMT |
| Width | 3.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS51218DSCT Datasheet
Download the complete datasheet for Texas Instruments TPS51218DSCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

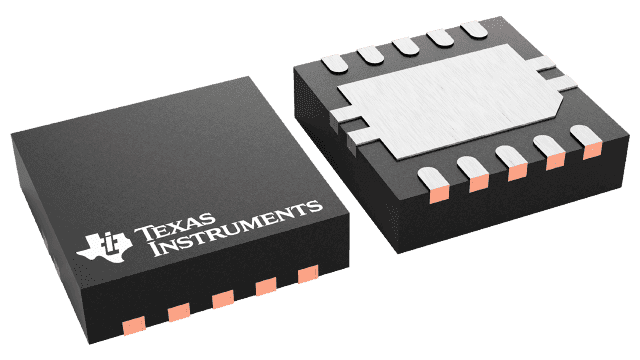

Product Images
