Texas Instruments
TPS40210SHKK
High Temperature Wide Input Range Current Mode Boost Controller 10-CFP -55 to 210
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS40210SHKK technical specifications.
General
| Lead Free | Contains Lead |
| Max Duty Cycle | 67.3% |
| Max Frequency | 1MHz |
| Max Operating Temperature | 210°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 10uA |
| Output Current | 1A |
| Output Voltage | 9V |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost, Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS40210SHKK Datasheet
Download the complete datasheet for Texas Instruments TPS40210SHKK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

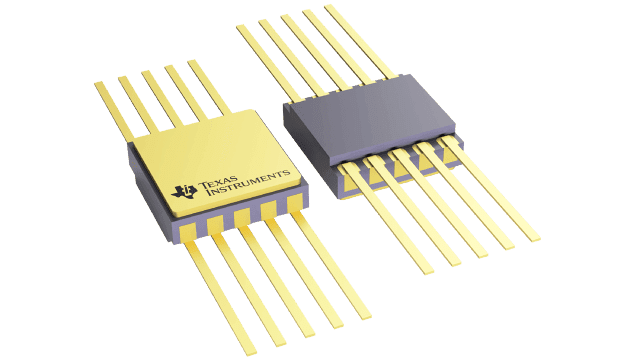

Product Images
