Surface mount liquid crystal display (LCD) driver IC featuring a serial interface and 32 segments. Operates with a supply voltage range of 3V to 10V, drawing a maximum supply current of 40µA. Offers an output current of 500mA and an output voltage of 50mV. This component functions across an extended temperature range of -40°C to 85°C with a maximum frequency of 1MHz and a power dissipation of 350mW.
Frequency1MHz
PackagePLCC
Current40uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MM5452V technical specifications.
General
| Package/Case | PLCC |
| Display Type | LCD |
| Frequency | 1MHz |
| Interface | Serial |
| Lead Free | Contains Lead |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 350mW |
| Max Supply Current | 40uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Segments | 32 |
| Output Current | 500mA |
| Output Voltage | 50mV |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | COPS™ |
| Supply Current | 40uA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments MM5452V Datasheet
Download the complete datasheet for Texas Instruments MM5452V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

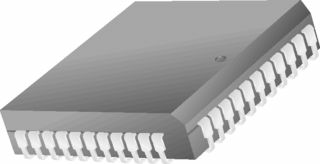

Product Images
