The LMX2531LQ1650E/NOPB is a 1.7GHz clock PLL from Texas Instruments. It operates over a temperature range of -40°C to 85°C and consumes 102mW of power. The device is available in a lead-free LLP-36 package and is suitable for surface mount applications. It is RoHS compliant and features a PLL with a maximum operating frequency of 1.7GHz.
Frequency1.7GHz
Current46mA
MountingSurface Mount
Power102mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2531LQ1650E/NOPB technical specifications.
General
| Frequency | 1.7GHz |
| Input | Clock |
| Lead Free | Lead Free |
| Max Frequency | 1.7GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.2V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3V |
| Packaging | Tape and Reel |
| PLL | Yes |
| Power Consumption | 102mW |
| RoHS Compliant | Yes |
| Supply Current | 46mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMX2531LQ1650E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2531LQ1650E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

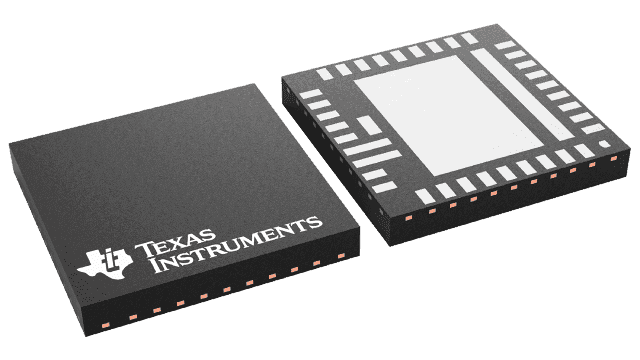

Product Images
