Texas Instruments
TMP709AIDBVR

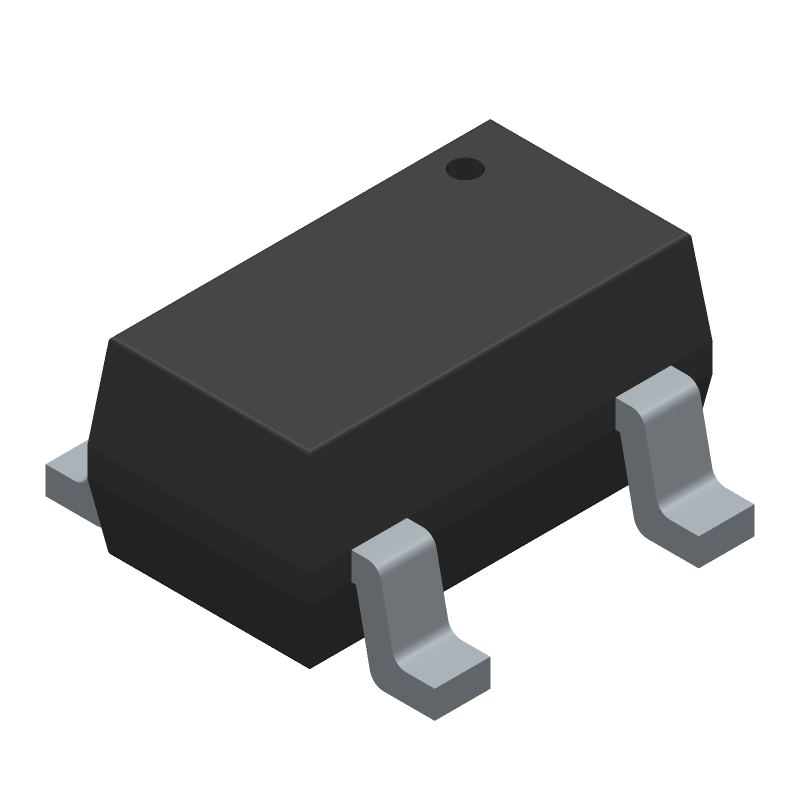

Resistor-programmable temperature switch with 2°C and 10°C hysteresis 5-SOT-23 -40 to 125
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP709AIDBVR technical specifications.
General
| Package/Case | SOT-23-5 |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Current | 40uA |
| Output Current | 20mA |
| Output Type | Analog |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 25uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMP709AIDBVR Datasheet
Download the complete datasheet for Texas Instruments TMP709AIDBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
