Technical Specifications
Apem JD7509A technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 4A |
| Electrical Life | 6000Cycles |
| Index Angle | 45° |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Number of Positions | 3 |
| Package Quantity | 25 |
| RoHS Compliant | Yes |
| Series | JD |
| Switch Function | On-On-On |
| Termination | Solder |
| Throw Configuration | SPDT, SP3T |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Apem JD7509A Datasheet
Download the complete datasheet for Apem JD7509A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

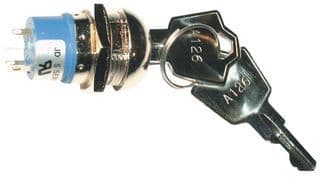

Product Images
