Digital humidity sensor with integrated temperature sensor, offering 3% humidity accuracy and 14-bit resolution. Operates from a 2.7V to 5.5V supply voltage, with a temperature range of -40°C to 125°C. Features an I2C digital interface and a fast 15s response time. Packaged in a compact 1.62mm x 2.07mm x 0.41mm 8-DSBGA surface-mount package. RoHS compliant and lead-free.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments HDC1000YPAT technical specifications.
General
| Accuracy | 3% |
| Package/Case | BGA |
| Height | 0.41mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 2.07mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Output Type | I2C, Digital |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| Response Time | 15s |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Width | 1.62mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments HDC1000YPAT Datasheet
Download the complete datasheet for Texas Instruments HDC1000YPAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

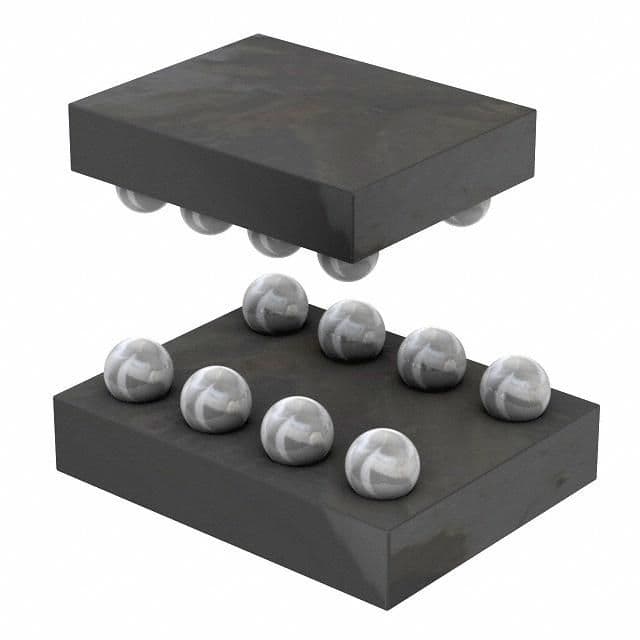

Product Images
