SMD tactile switch featuring a beige, standard actuator and a straight orientation. This SPST, Off-Mom switch offers a 50mA contact current rating at 24V DC, with gold and silver contact materials. Designed for surface mounting, it boasts a 0.25mm switch travel and a mechanical and electrical life of 50,000 cycles. The component is IP67 rated, waterproof, and dust-tight, operating within a -20°C to 70°C temperature range.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron B3SN-3112 technical specifications.
General
| Actuator Color | Beige |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Silver, Gold |
| Current Rating | 50mA |
| Depth | 7mm |
| Electrical Life | 50000Cycles |
| Height | 3.1mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Length | 6.5mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 50000Cycles |
| Mount | Surface Mount |
| Number of Poles | 1 |
| Operating Force | 1.57N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B3SN |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.2g |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3SN-3112 Datasheet
Download the complete datasheet for Omron B3SN-3112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

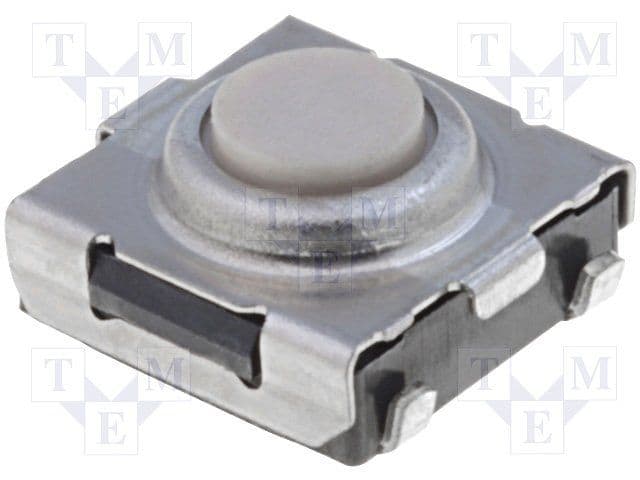

Product Images
