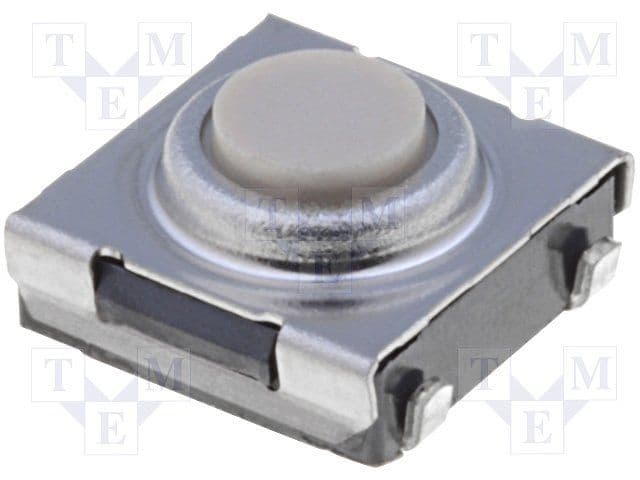

SPST tactile switch with a beige, standard round button actuator. Features a 50mA DC current rating at 24VDC, 1.57N operating force, and 0.25mm switch travel. This non-illuminated, sealed surface mount component offers 50,000 electrical and mechanical cycles, IP67, waterproof, and dust-tight ratings. Dimensions are 6.5mm L x 6mm W x 3.1mm H, with a 7mm depth.
PackageSMD/SMT
Current Rating50mA
MountingSealed, Surface Mount
Quick Jump:
Technical Specifications
Omron B3SN-3012 technical specifications.
General
| Actuator Color | Beige |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 50mA |
| Depth | 7mm |
| Electrical Life | 50000Cycles |
| Height | 3.1mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Length | 6.5mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Sealed, Surface Mount |
| Number of Poles | 1 |
| Operating Force | 1.57N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3SN |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.007055oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3SN-3012 Datasheet
Download the complete datasheet for Omron B3SN-3012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
