Texas Instruments
UCC28910DR
700V Flyback switcher with constant-voltage constant-current and primary-side control 7-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28910DR technical specifications.
General
| Package/Case | SOIC |
| Efficiency | 75% |
| Fault Protection | Over Voltage, Over Temperature |
| Lead Free | Lead Free |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.26A |
| Max Power Dissipation | 9.5W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC28910DR Datasheet
Download the complete datasheet for Texas Instruments UCC28910DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

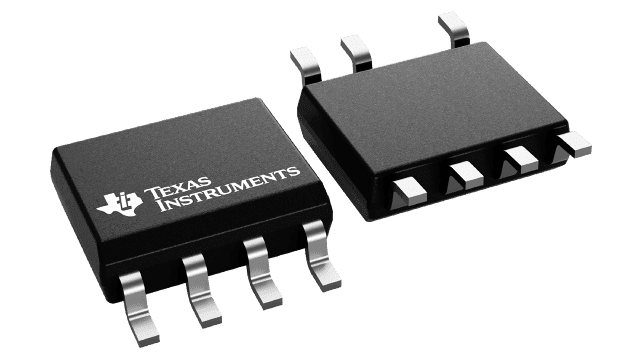

Product Images
