Ultra-low-power 32-bit ARM Cortex-M3 microcontroller featuring 128KB FLASH memory and a 32MHz CPU. Offers 37 I/Os, 16KB RAM, and integrated peripherals including I2C, SPI, USB, UART, USART, LIN, IrDA, DMA, and multiple timers. Operates from 1.65V to 3.6V with a wide temperature range of -40°C to 85°C. Packaged in a UFQFPN with dimensions of 7.1mm x 7.1mm x 0.6mm.
Frequency32MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L151CBU6 technical specifications.
General
| Package/Case | UFQFPN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 32MHz |
| Height | 0.6mm |
| Interface | I2C, SPI, USB, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 339mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Number of ADC Channels | 14 |
| Number of I/Os | 37 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 51 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 8 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 L1 |
| Watchdog Timer | Yes |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32L151CBU6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L151CBU6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

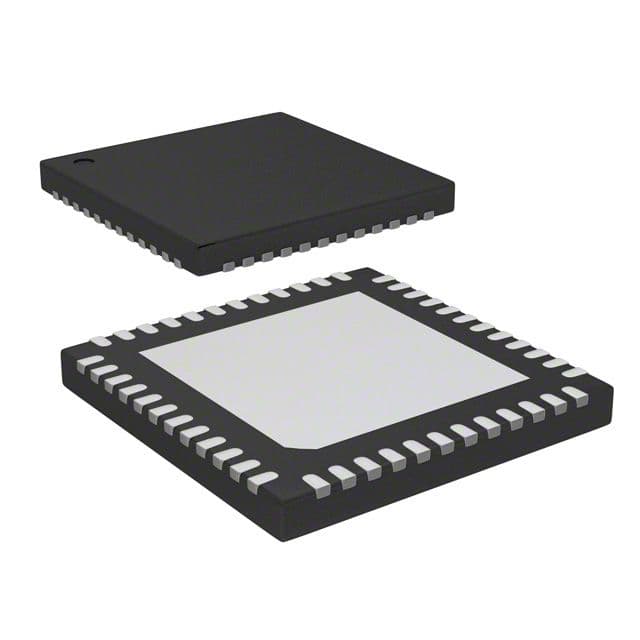

Product Images
