Frequency20MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M95640-RMC6TG technical specifications.
General
| Access Time-Max | 20ns |
| Density | 64Kb |
| Frequency | 20MHz |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 8KX8 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M95640-RMC6TG Datasheet
Download the complete datasheet for Stmicroelectronics M95640-RMC6TG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

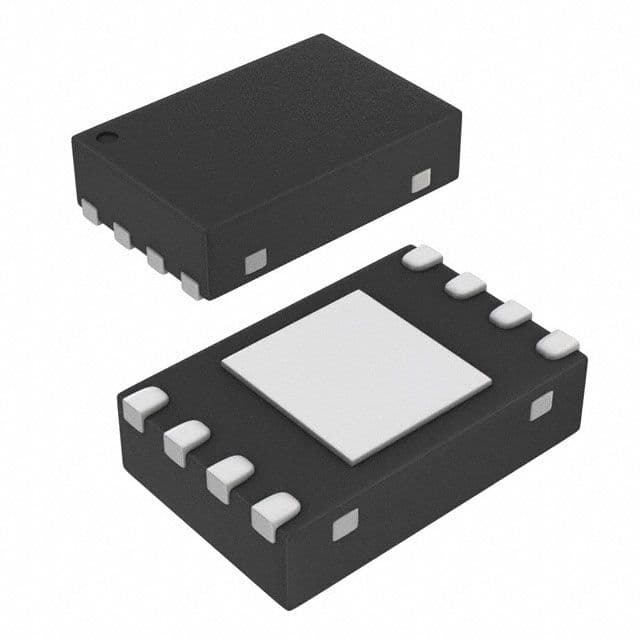

Product Images
