Surface mount shunt regulator, programmable and adjustable, offering a 36V reference voltage with 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates within a temperature range of -25°C to 85°C, with a cathode current requirement of 1mA. Packaged in a compact SOT-23-3 case, supplied on a 3000-piece tape and reel.
PackageSOT-23-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi KA431SAMF2TF technical specifications.
General
| Package/Case | SOT-23-3 |
| Cathode Current | 1mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 37V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Voltage | 36V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Programmable, Adjustable |
| Reference Voltage | 36V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
| Weight | 0.0488g |
| Width | 1.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi KA431SAMF2TF Datasheet
Download the complete datasheet for Onsemi KA431SAMF2TF to view detailed technical specifications.
No datasheet is available for this part.

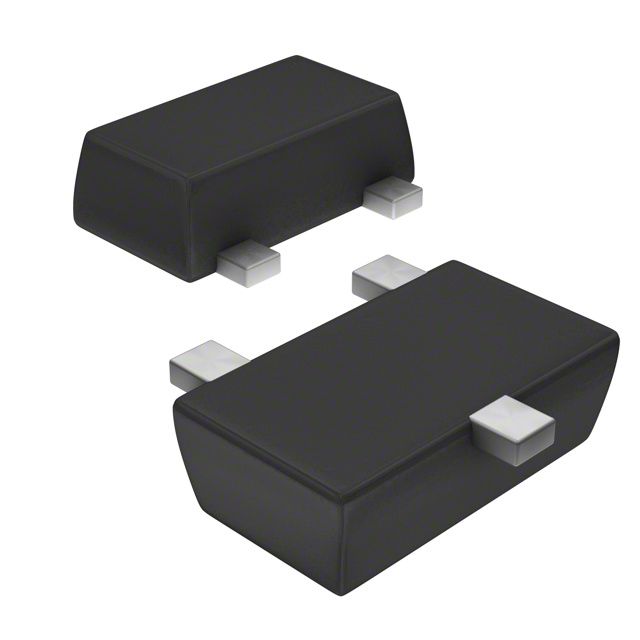

Product Images
