14-bit, 400 MSPS digital-to-analog converter (DAC) featuring 2x-4x interpolation. This single-channel DAC offers a 14-bit resolution with a 400 MS/s conversion rate and a 0.02 µs settling time. It boasts a signal-to-noise ratio (SNR) of 70 dB and a spurious-free dynamic range (SFDR) of 76 dB. Operating from a 3V to 3.6V supply, this RoHS compliant component is housed in a gold-plated HTQFP package, suitable for applications within a -40°C to 85°C temperature range.
PackageHTQFP
Power435mW
Quick Jump:
Technical Specifications
Texas Instruments DAC5674IPHPR technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 400MS/s |
| Differential Nonlinearity | 2LSB |
| Integral Nonlinearity (INL) | 3.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 550mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 107mA |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 435mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 400000000S/s |
| Series | CommsDAC™ |
| Settling Time | 0.02us |
| Signal to Noise Ratio (SNR) | 70dB |
| Spurious-free dynamic range (SFDR) | 76dB |
| Supply Type | Analog, Digital |
| Weight | 0.004744oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC5674IPHPR Datasheet
Download the complete datasheet for Texas Instruments DAC5674IPHPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

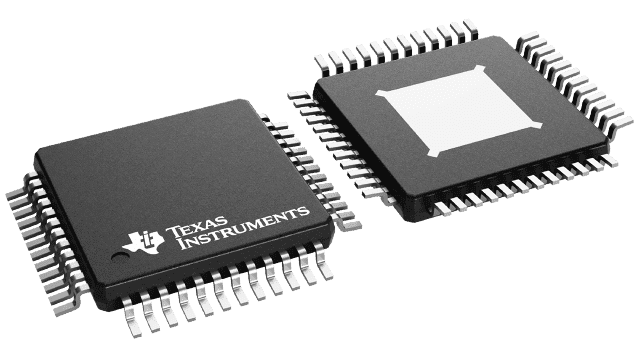

Product Images
