16-bit RISC core telecom IC featuring a 300 MHz to 928 MHz operating frequency. Includes 2KB RAM, 16384B density, and 8 analog-to-digital converters with 8 channels. Supports I2C, SPI, IrDA, and UART interfaces, with 44 GPIO pins. Operates from 1.8V to 3.6V, with a sensitivity of -117dBm and a watchdog timer. Packaged in VQFN EP with a maximum operating temperature of 85°C.
Frequency20MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments CC430F6135IRGC technical specifications.
General
| Package/Case | VQFN EP |
| Core Architecture | RISC |
| Current - Receiving | 18.5mA |
| Current - Transmitting | 36mA |
| Data Bus Width | 16b |
| Density | 16384B |
| Frequency | 20MHz |
| Interface | I2C, SPI, IrDA, UART |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2KB |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 8 |
| Number of ADC Channels | 8 |
| Number of GPIO | 44 |
| Operating Frequency | 300 MHz to 928 MHz |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 2048B |
| RoHS Compliant | Yes |
| Sensitivity | -117dBm |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC430F6135IRGC Datasheet
Download the complete datasheet for Texas Instruments CC430F6135IRGC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

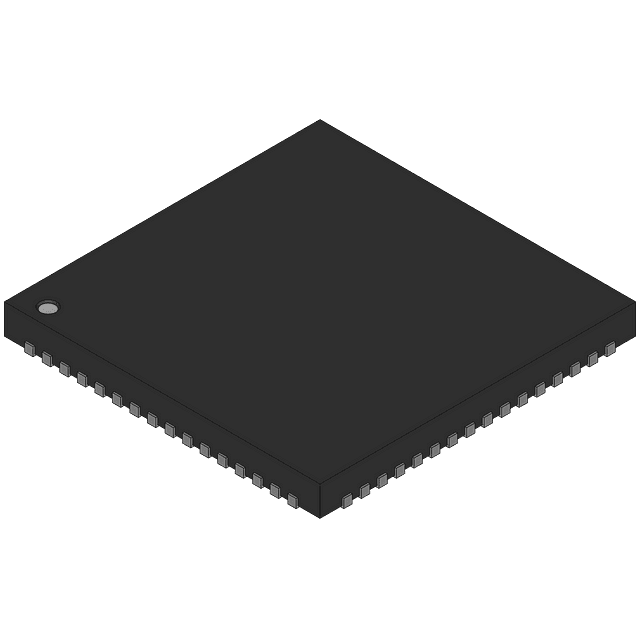

Product Images
