Insulated interconnection device featuring a straight, through-hole mount orientation. Constructed with a bronze body and contacts, plated with tin and silver for enhanced conductivity. The nylon insulation, in a black housing, ensures reliable performance. This component offers a single contact and port with a 2.54mm outside diameter and 1.27mm inside diameter, measuring 7.62mm in length. RoHS compliant and lead-free.
MountingThrough Hole
Quick Jump:
Technical Specifications
Keystone Electronics 5001 technical specifications.
General
| Body Material | Bronze |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Tin, Silver |
| Diameter | 2.54mm |
| Housing Color | Black |
| Inside Diameter | 1.27mm |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 7.62mm |
| Material | Nylon, Bronze, Silver |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Outside Diameter | 2.54mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Silver |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THM |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
Keystone Electronics 5001 Datasheet
Download the complete datasheet for Keystone Electronics 5001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

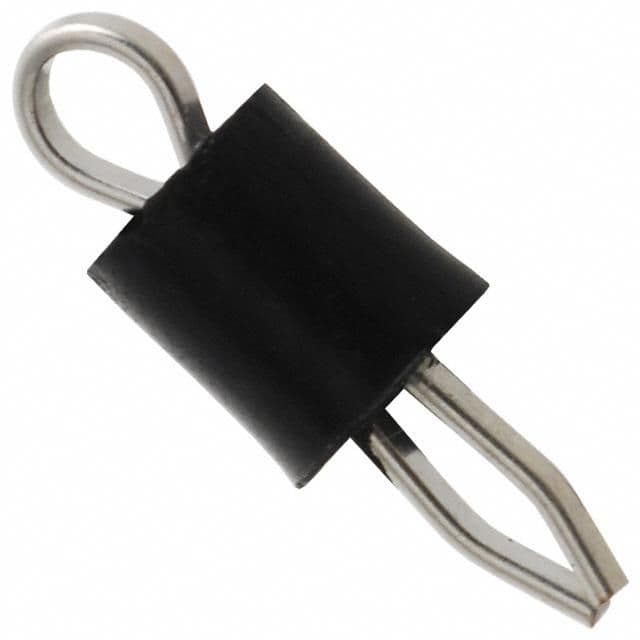

Product Images
