Ultra-small, 2 MHz step-down DC/DC controller delivering 500mA output current at a fixed 1.2V. Achieves up to 94% efficiency with DCS-Control, operating from a 2.05V to 6V input. Features a low 22µA quiescent current and a compact 1x1.5mm SON package with 500µm thickness. Suitable for a wide temperature range of -40°C to 125°C.
PackageSON
Current22uA
Quick Jump:
Technical Specifications
Texas Instruments TPS62232DRYR technical specifications.
General
| Package/Case | SON |
| Efficiency | 94% |
| Height | 600um |
| Lead Free | Lead Free |
| Length | 1.45mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.05V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 1.2V |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 2.05V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Quiescent Current | 22uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 22uA |
| Synchronous Rectifier | Yes |
| Thickness | 500um |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62232DRYR Datasheet
Download the complete datasheet for Texas Instruments TPS62232DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

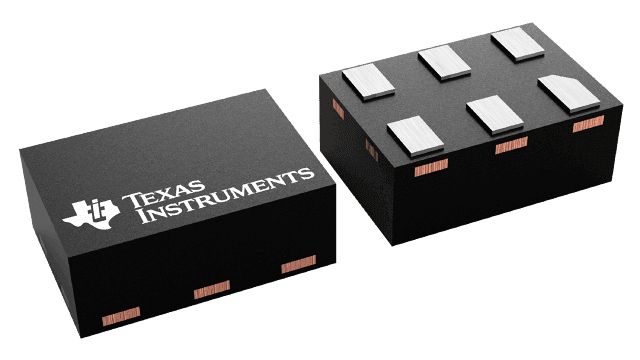

Product Images
