Technical Specifications
NXP NX5P3001UKZ technical specifications.
General
| Fault Protection | Over Temperature, Reverse Current |
| Interface | On/Off, Serial |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Power Dissipation | 1.44W |
| Mount | Surface Mount |
| Nominal Input Voltage | 3.3V |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | NX5 |
Compliance
| RoHS | Compliant |
Datasheet
NXP NX5P3001UKZ Datasheet
Download the complete datasheet for NXP NX5P3001UKZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

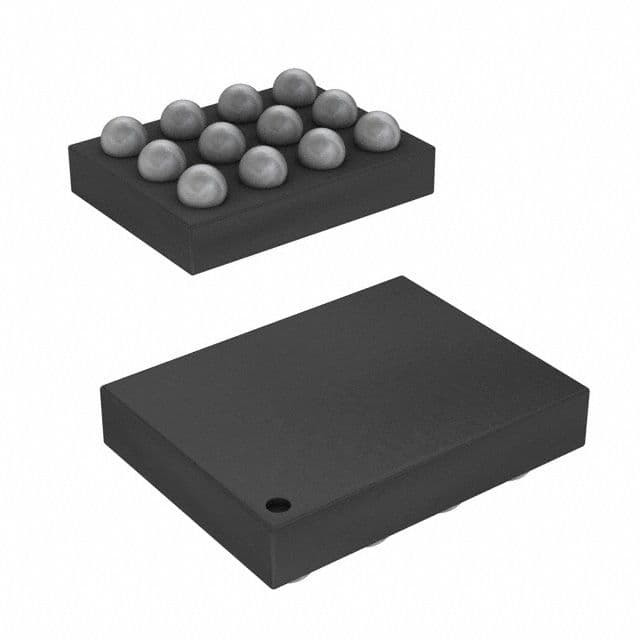

Product Images
