Female, straight, 2-position, 1-row interconnection device with a 2.54mm pitch. Features bronze contacts with tin plating, a black housing, and a maximum current rating of 3A at 250V. Operates within a temperature range of -40°C to 85°C and boasts a UL94 V-0 flammability rating. This RoHS compliant component is supplied in bulk packaging.
Voltage Rating250V
Quick Jump:
Technical Specifications
Harwin M7567-46 technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Depth | 2.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 5mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M75 |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M7567-46 Datasheet
Download the complete datasheet for Harwin M7567-46 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

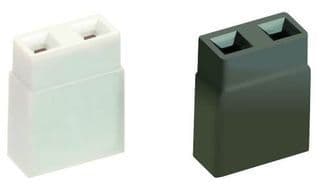

Product Images
