The LTC2378HMS-18#PBF is an 18-bit analog-to-digital converter with a sampling rate of 1 MSPS. It features a SPI interface and is available in a TFSOP package. The device operates over a temperature range of -40°C to 125°C and has a maximum power dissipation of 15.8mW. It is RoHS compliant and suitable for surface mount applications.
PackageTFSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2378HMS-18#PBF technical specifications.
General
| Package/Case | TFSOP |
| Interface | SPI, Serial |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15.8mW |
| Mount | Surface Mount |
| Number of Bits | 18 |
| Number of Converters | 1 |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Sampling Rate | 1000000S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2378HMS-18#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2378HMS-18#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

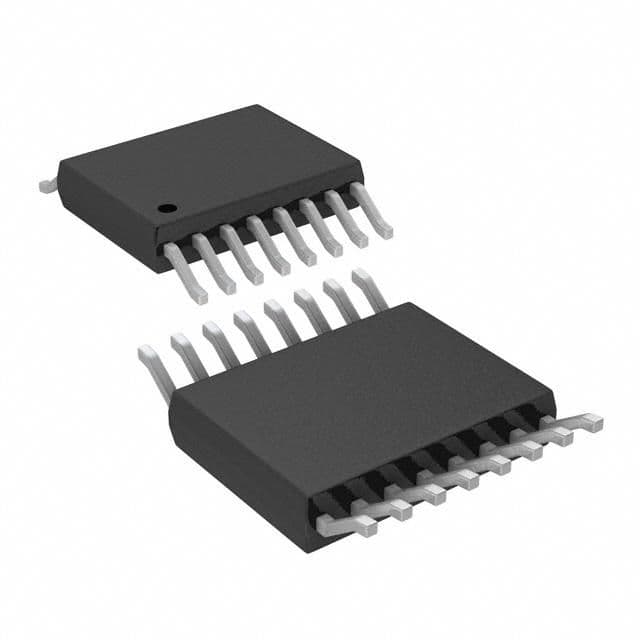

Product Images
