Analog Devices
LT3595AEUHH#PBF
16-Channel LED Driver, 2.4MHz, 45V, QFN EP, -40°C to 85°C, RoHS Compliant
The LT3595AEUHH#PBF is a 16-channel LED driver from Analog Devices, operating at a frequency of 2.4MHz and a maximum supply voltage of 45V. It is packaged in a QFN EP package and is compliant with RoHS regulations. The device is designed to operate within a temperature range of -40°C to 85°C, making it suitable for various applications. The LT3595AEUHH#PBF is available in packaging quantities of 40, packaged in rail or tube formats.
Frequency2.4MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LT3595AEUHH#PBF technical specifications.
General
| Package/Case | QFN EP |
| Frequency | 2.4MHz |
| Lead Free | Lead Free |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 16 |
| Number of Segments | 48 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3595AEUHH#PBF Datasheet
Download the complete datasheet for Analog Devices LT3595AEUHH#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

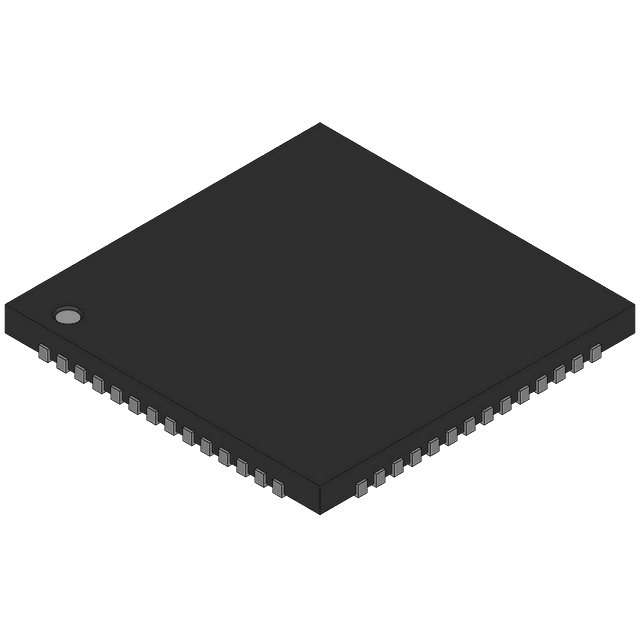

Product Images
