PackageSOT-23
Current Rating70mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics BAS70FILM technical specifications.
General
| Average Rectified Current | 70mA |
| Package/Case | SOT-23 |
| Current Rating | 70mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 10uA |
| Max Reverse Leakage Current | 10uA |
| Max Reverse Voltage (DC) | 70V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Output Current | 70mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 70V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BAS70FILM Datasheet
Download the complete datasheet for Stmicroelectronics BAS70FILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

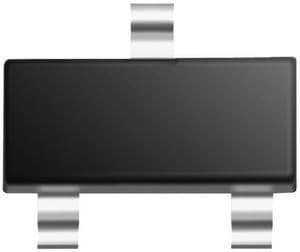

Product Images
